TEGO PLUG IN 2 WIRE LED LOOP POWERED DISPLAY - Suits Transmitters with 4-20 mA output and DIN 43650 Plug connection
- Self Powered from current loop
- Easy programming with push buttons for span, zero and decimal point
- IP65 Protection
- Display can be rotated in 90 Degree Steps
- Setup stored in EEPROM Memory
| PART NUMBER | DESCRIPTION | | TCLEDDDIN | Din Plug LED Display 4—20 mA | | TCHIRSCHFREEPLUG | Hirschmann Plug 4 pin Right Angle | | PART NUMBER | DESCRIPTION | | TCGSPM20 | M20 THREAD FITTING WITH 3 TERMINALS AND EARTH | | TCGSPP16 | PG16 THREAD FITTING WITH 3 TERMINALS AND EARTH | | | WIRING CHARGE FIT INTO HEAD ASSEMBLY | | | M16 Thread not available. | Drawings    | DISPLAY | | TYPE | 4 Digit, red LED display, digit height 7mm, digit width 4.85mm | | RANGE | -1.9.9.9 to 9.9.9.9 | | ACCURACY | 0.1% ± 1 digit | | DIGITAL DAMPING | 0 to 20 s (step 0.5 s) | | SUPPLY | | SUPPLY | Not required, 4 to 20 mA loop powered | | VOLTAGE DROP | <2.5V | | ELECTRICAL PROTECTION | | SHORT-CIRCUIT PROTECTION | Permanent | | REVERSE POLARITY PROTECTION | Max. current: approx. 200 mA | | AMBIENT TEMPERATURES | | OPERATING | -20 to 70°C | | STORAGE | -30 to 85°C | | MATERIALS | | DISPLAY HOUSING | ABS | | OTHERS | | WEIGHT | Approx. 80g | | INGRESS PROTECTION | IP 65 | | COLOUR OF HOUSING | Black |
TEGO BUILT IN TEMPERATURE TRANSMITTER MODULE 2 WIRE - Universal Input Thermocouple and RTD ( programmable via HART Modem )
- 4—20 m A Non Isolated Output

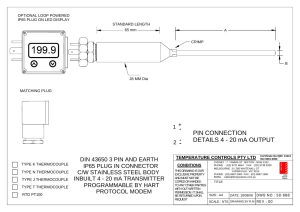

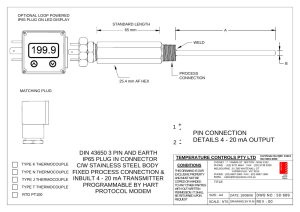

This module can be fitted into a Temperature Sensor Body and a DIN 43650 Hirschmann style Connector Fitted. | PART NUMBER | DESCRIPTION | | TCBTM101 | Transmitter 2 Wire Module Only | | TCHIRSCHFREEPLUG | Hirschmann Plug 4 pin Right Angle | | SD 688 | Body with No thread and 4 Pin Connector ( Body Length 70 mm | | SD 689 | Body with 1/2” NPT / BSP Thread ( Body Length 85 mm plus Thread ) | - Other size threads on Appication
- Add to basic stem RTD Teflon Page 47 or RTD Mims Page 52
| | | |
