Hazardous Area Ex ia
Thermocouples and RTD Sensors are an Ignition Source
RTD and Thermocouple sensors are considered to be simple apparatus and when fitted with appropriate barriers may be installed freely in IS Circuits, ( Ex ia ) no further certification is necessary.
However the RTD and Thermocouple Sensors must meet the requirements of; AS/NZS 60079.11: 2006 Explosive Atmospheres Part 11 Equipment Protection by intrinsic safety ’i ’ Section 6.3.12 Dielectric strength requirement “ 500 VAC RMS Test Voltage of Insulation Resistance between Conductors or Conductors and Sheath for 2 minutes “
Thermocouples ( insulated junctions only ) and RTD Sensors manufactured will be subjected to the following tests:
- Visual and Dimensional Inspection
- Insulation Resistance Minimum 1000 M Ohms
- Upscale Polarity Test
- Electrical Continuity Test
| Part No TCTXEXI | Transmitter Head Mounted 2 Wire Hart Protocol Ex ia (IECEx Approved) | ||
|---|---|---|---|
| IPAQ 202X |  | ||
| IPAQ 330X | | ||
| IPAQ 520X |  | ||
| IPAQ 530X | | ||
| Multi Input Thermocouple and RTD | Data Sheet SD 1836 IECEx Certificate SD 1837 |  | |
IECEx Certification
Certificate of Test 1047 will be supplied, there are a number of variations depending upon equipment supplied.
- SD 1047

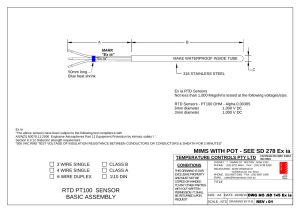

- SD 145 Ex ia

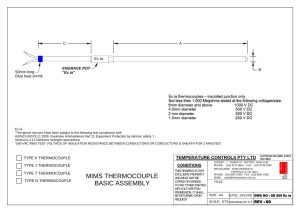

- SD 050 Ex ia

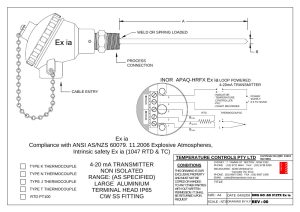

- >SD 012 Tx Ex ia

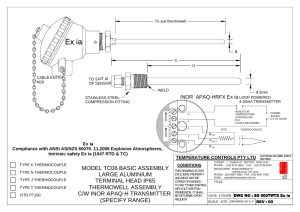

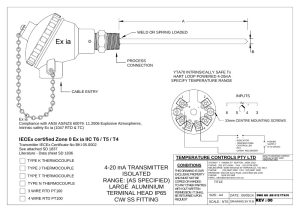

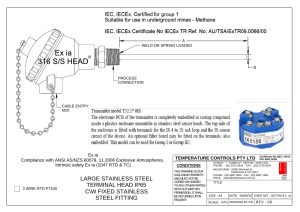

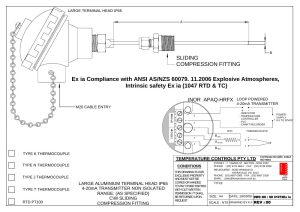

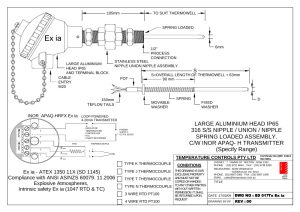

There are a number of sales drawings available and have a Ex ia Suffix added to the relevant SD number.
All thermocouples and RTD sensors in the price list meeting the requirements can be offered. The sensor will have a label attached .
Transmitters
To compliment these we have available the TCA range of IECEx Approved and in head 2 wire transmitters.
Product Drawings
Drawings and documents
11 drawings and documents in this family
-
1047, CERTIFICATE OF COMPLIANCE Ex ia
Listed by TC as the certificate of test for Ex ia sensors
-
SD 1836
Listed by TC as the datasheet for transmitter TCTXEXI
-
SD 1837
Listed by TC as the IECEx certificate for transmitter TCTXEXI
