Hand Held Probes
Temperature Controls manufacture a stock range of probes to suit the hand held thermometers and will manufacture custom assemblies to suit your application for Food, Air, Liquids, Surface. Compost and immersion temperature measurement.
All hand held probes fixed with 2 mtr Kurly Cord and moulded mini plug.

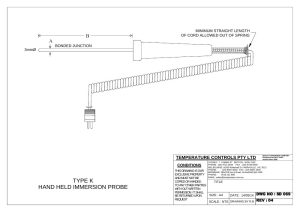

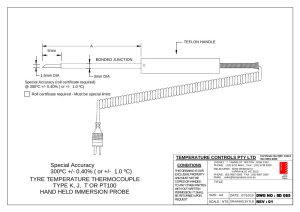

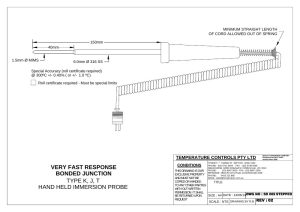

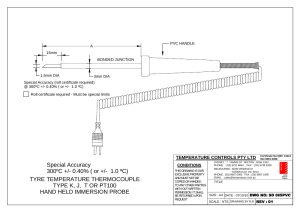

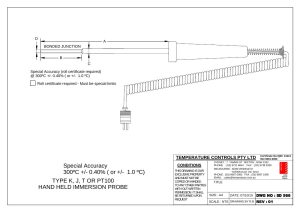

Immersion probes 1.5mm,3.0mm & 6.0mm

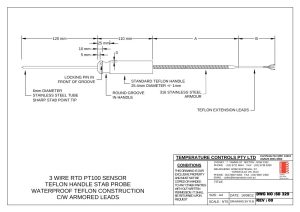

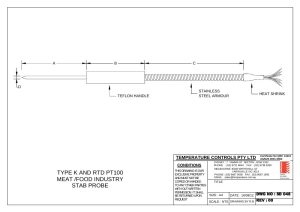

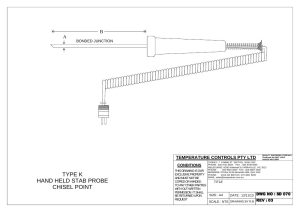

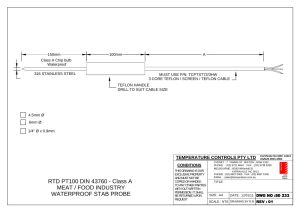

Stab Probes
Frozen Food, Meat Temperature Measurement

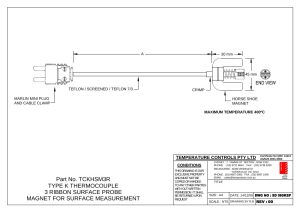

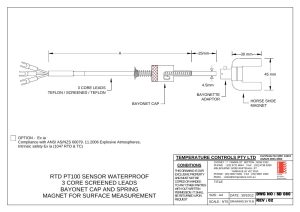

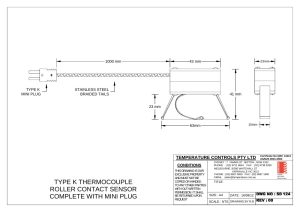

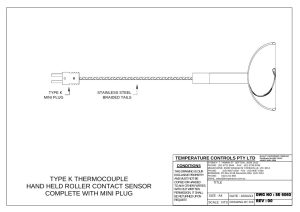

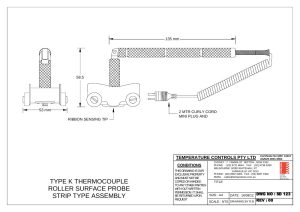

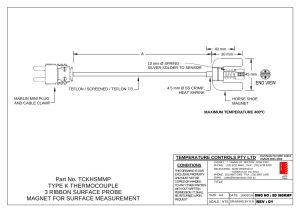

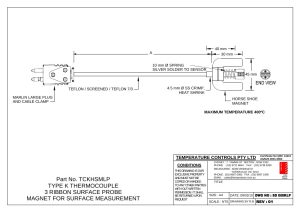

Surface Probes
Max 8000
- Low cost
- Fast Response tip

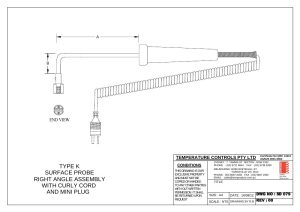

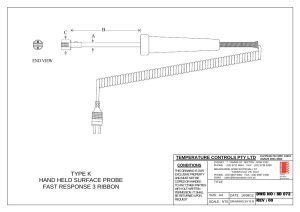

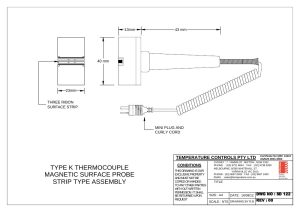

Surface Probes
Right angle design

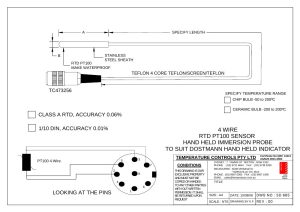

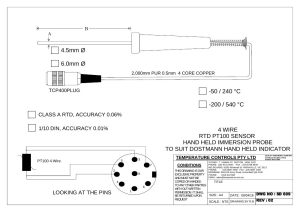

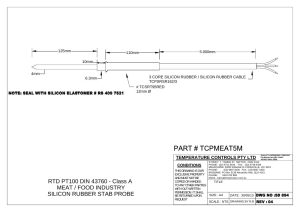

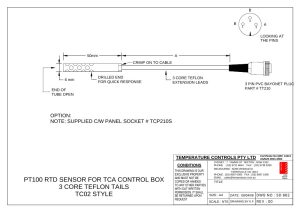

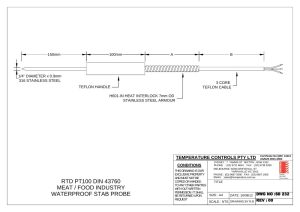

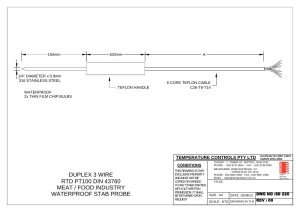

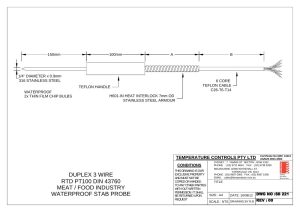

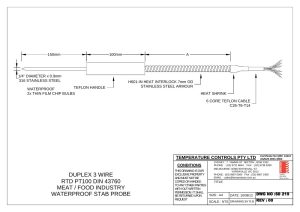

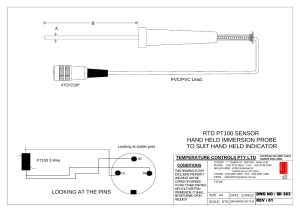

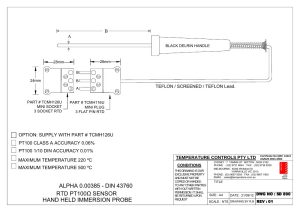

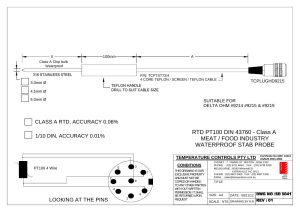

RTD Hand Probes
Class A or 1/10 DIN Tolerance

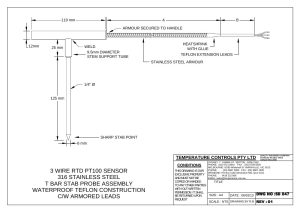

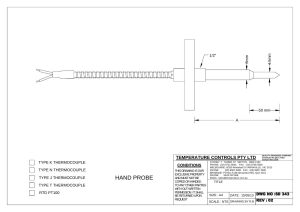

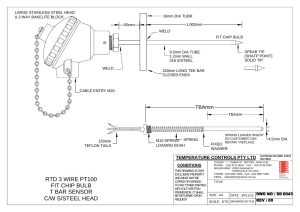

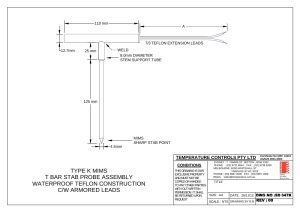

Tee bar to suit meat and frozen foods.

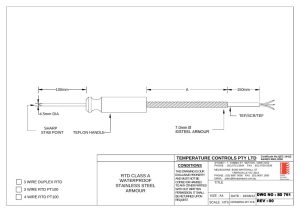

Armoured leads
| Model | Calibration | Diameter | Length |
|---|---|---|---|
| TC18K025060 | K | 6.0 | 250 |
| TC15K015030 | Calibration | Diameter | Length |
|---|---|---|---|
| TC15K015030 | K | 3.0 | 150 |
| TC15K030030 | K | 3.0 | 300 |

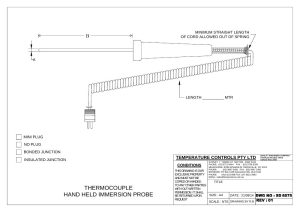

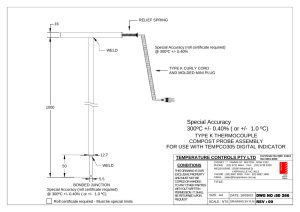

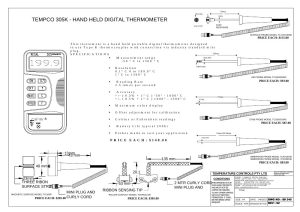

Drawings and documents
Know the drawing number?
Search thermocouple drawings by number. The exact drawing comes first, with its variants listed separately.
Not on a standard drawing?
Send a drawing or describe the process conditions for a quotation. CAD drawings for custom assemblies are available on request.
