Dial Thermometers

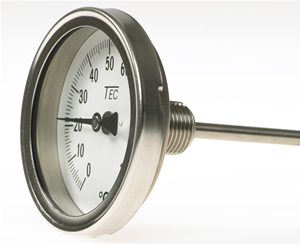

| TEC Bi-Metal Thermometers | ||
|---|---|---|
| Model | Length | |
| 3″ Back Connected | BL-3 | Up to 6″ |
| 3″ Every Angle | BA-3 | Up to 6″ |
| 5″ Every Angle | BA-5 | Up to 6″ |
| 3″ Back Connected | BL-3 | 9 or 12″ |
| 3″ Every Angle | BA-3 | 9 or 12″ |
| 5″ Every Angle | BA-5 | 9 or 12″ |
| TCA Magnetic Surface Thermometers | ||
|---|---|---|
| Model | Range | |
| TCST120C | 0-120°C x 2°C | |
| TCST250C | 0-250°C x 2°C | |
| TCST400C | 0-400°C x 5°C | |
TEC Gas Filled Dial Thermometers

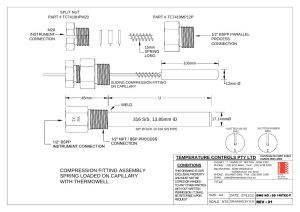

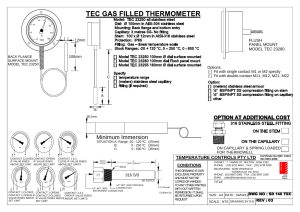

Model 23280 Surface Mounted ( SD 140TEC )
- 12 x 100mm bulb 3mm Ø SS capillary 3 mtrs long
- Quality all stainless steel thermometers.
- Available in surface or panel mounting models.
- 100mm or 160mm – dial size
- 304 stainless steel case and capillary
Model 23250 Panel Mounted
- Quality all stainless steel construction IP65 case
- White dial face with large easy to read graduations
- 100 mm or 160 mm Dial
- 4″ Dial 6″ Dial Optional

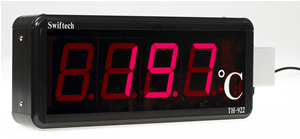

TCA Large LED Display
- Range -50 to 199.9°C
- Input RTD or 4-20mA
- Power Supply: 85 – 240VAC
- Dimensions: 395mm W, 200mm H, 100mm D

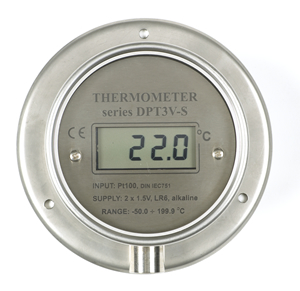

TCA Digital Thermometers
- All Stainless Steel 100mm diameter case
- IP65 Protection
- Battery Powered (Approx 3 years life 2 x 1.5VAA)
- 3 Wire RTD PT100 Input
- 13mm High LCD Display
- Accuracy = 0.25% of full scale
- Range – 50 to 199.9°C
