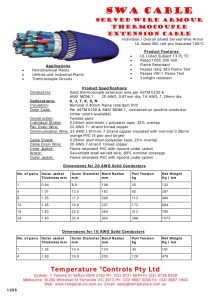

Individual / Overall Shield Served Wire Armor UL listed 300 volt pvc insulated 105ºC
Product Features
- UL Listed Subject 13 PL TC
- Rated 105C 300 Volt
- Flame Retardant
- Passes IEEE 383 Flame Test
- Passes VW-1 Flame Test
- Sunlight resistant
Product Specifications
- Conductors: Solid thermocouple extension wire per ASTM E230 & ANSI MC96.1 20 AWG, 0.81mm dia
- Calibrations: K, J, T, R, S, N
- Insulation: Nominal 0.40mm flame retardant PVC
- Color Code: Per ASTM E230 & ANSI MC96.1, numbered on positive conductor (other colors available)
- Construction: Twisted pairs
- Individual Shield: 0.03mm aluminium / polyester tape, 25% overlap
- Pair Drain Wire: 22 AWG 7- strand tinned copper
- Communication Wire: 22 AWG (.61mm) 7 strand copper insulated with nominal 0.38mm orange PVC (4 pair and larger)
- Cable Shield: 0.05mm aluminium/polyester tape, 25% overlap
- Cable Drain Wire: 20 AWG 7-strand tinned copper
- Inner Jacket: Flame retardant PVC with ripcord under jacket
- Armor: Galvanized steel served wire, 80% nominal coverage
- Outer Jacket: Flame retardant PVC with ripcord under jacket
Price – Phone Sydney: 02 9721 8644, Melbourne: 03 9687 0000, Queensland 07 3373 8424
We import directly from the USA and large quantities are available to us ex stock. Usual delivery is two weeks air freight.
- ex stock 1000 ft/ 305 mtr rolls kept ex stock
- prices are quoted FOT Sefton NSW
- any length supplied – no cutting surcharge
