Single / Multi Point Large Stainless Steel Floats

Large stainless steel Floats

Data	MATERIAL	Fitting	Ø	SG	Temp	STYLE	OTHER	ACTION
SD1047						Ex ia Hazardous area		Reed switch

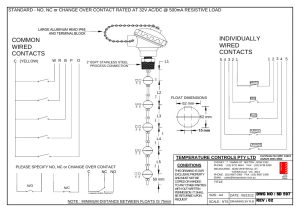

SD597	316 S/S					Wiring diagram Commonly or Individually Wired Contacts

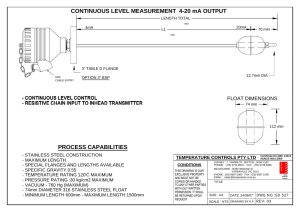

SD527	S/S	As required	74mm	0.55	120 ºC	VERTICAL		4-20 mA Output

SD348	316 S/S	3/8” BSP	52mm	0.55	120 ºC	VERTICAL	TC5001	Reed switch
SD349	316 S/S	3/8” BSP	52mm	0.55	120 ºC	RIGHT ANGLE	TC5002	Reed switch
SD053	316 S/S	3/8” BSP	52mm	0.55	120 ºC	RIGHT ANGLE		Reed switch

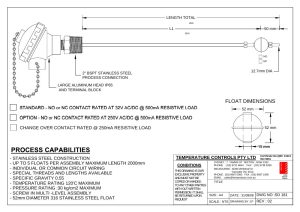

SD181	316 S/S	2”BSP/NPT	52mm	0.55	120 ºC	VERTICAL	Single float	Reed switch

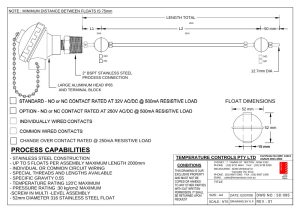

SD095	316 S/S	2”BSP/NPT	52mm	0.55	120 ºC	VERTICAL	2 Floats	Reed switch

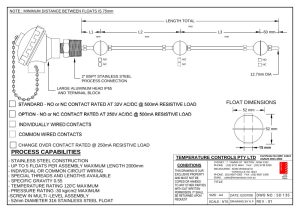

SD135	316 S/S	2”BSP/NPT	52mm	0.55	120 ºC	VERTICAL	3 floats	Reed switch

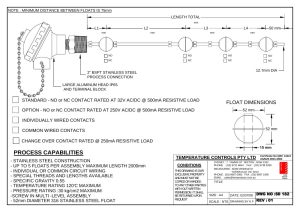

SD182	316 S/S	2”BSP/NPT	52mm	0.55	120 ºC	VERTICAL	4 floats	Reed switch

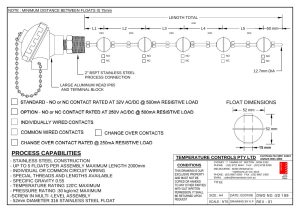

SD189	316 S/S	2”BSP/NPT	52mm	0.55	120 ºC	VERTICAL	5 floats	Reed switch

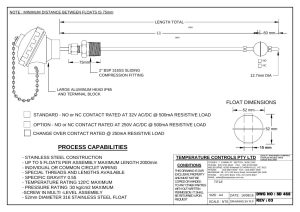

SD468	316 S/S	2”BSP/NPTCF	52mm	0.55	120 ºC	Adjustable vertical	Single float	Reed switch

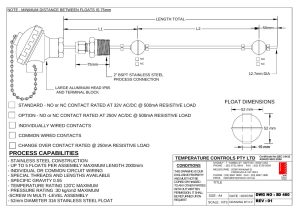

SD460	316 S/S	2”BSP/NPTCF	52mm	0.55	120 ºC	Adjustable vertical	2 Floats	Reed switch

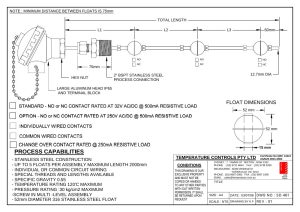

SD461	316 S/S	2”BSP/NPTCF	52mm	0.55	120 ºC	Adjustable vertical	3 floats	Reed switch
SD462	316 S/S	2”BSP/NPTCF	52mm	0.55	120 ºC	Adjustable vertical	4 floats	Reed switch

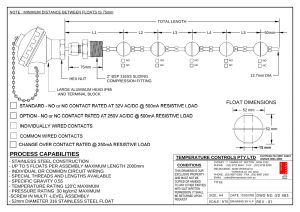

SD463	316 S/S	2”BSP/NPTCF	52mm	0.55	120 ºC	Adjustable vertical	5 floats	Reed switch

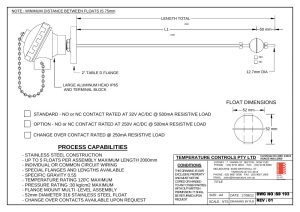

SD193	316 S/S	2“TABLE D	52mm	0.55	120 ºC	VERTICAL	Single float	Reed switch

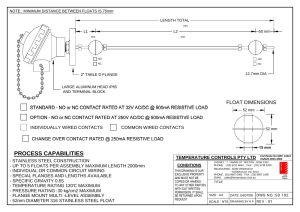

SD192	316 S/S	2“TABLE D	52mm	0.55	120 ºC	VERTICAL	2 Floats	Reed switch

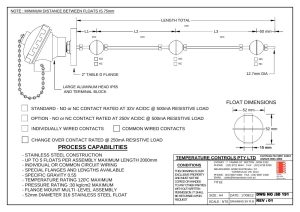

SD191	316 S/S	2“TABLE D	52mm	0.55	120 ºC	VERTICAL	3 floats	Reed switch

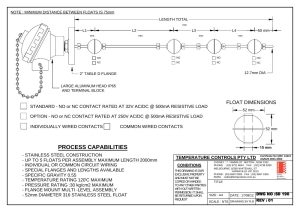

SD190	316 S/S	2“TABLE D	52mm	0.55	120 ºC	VERTICAL	4 floats	Reed switch

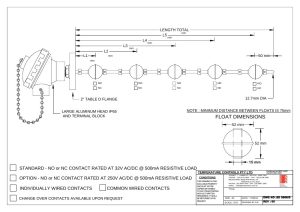

SD090	316 S/S	2“TABLE D	52mm	0.55	120 ºC	VERTICAL	5 floats	Reed switch

Drawings and documents
