Thermocouple multi pair extension cable

Twisted pair thermocouple extension cable with an overall shield, UL listed, PVC insulated and rated to 105 °C and 300 volt. Typically stocked in Types K, J, T, N and R, from 2 to 30 pairs. Individually screened versions are listed with the model numbers.

Request a quote 29 model numbers

Features on datasheet 1250

UL Listed Subject 13 PL TC
Rated 105 °C, 300 volt
Flame retardant
Passes IEEE 383 flame test
Passes VW-1 flame test
Sunlight resistant

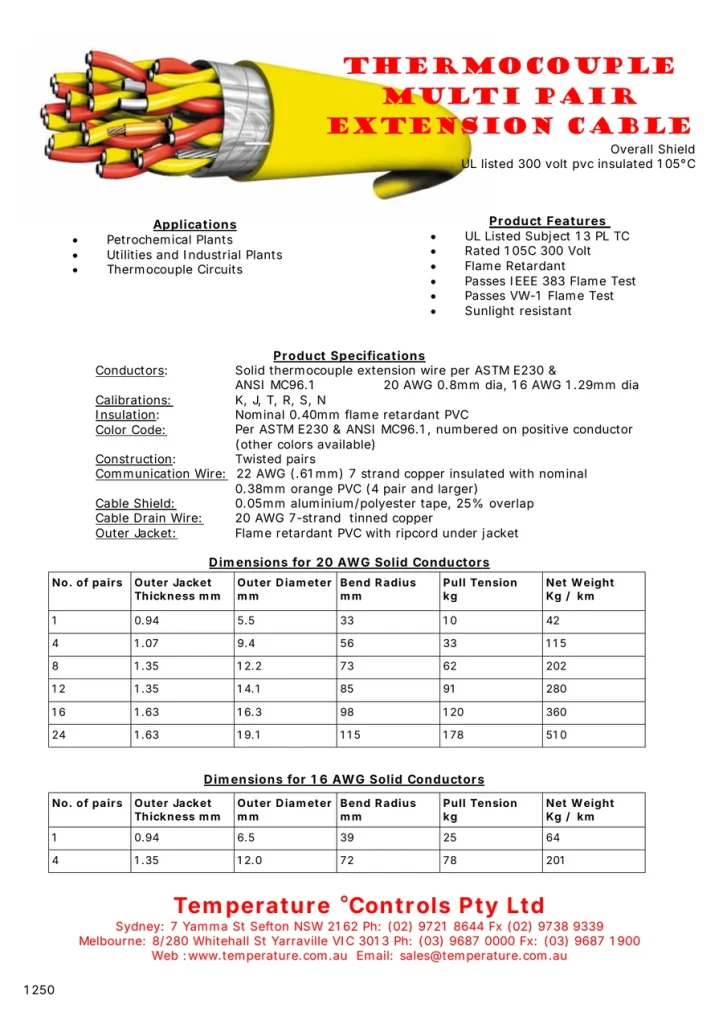

Datasheet 1250, PDF, 1 page, 63 KBOpen PDF

Specifications

From datasheet 1250, which covers the overall shield cable. Ask us about the individually screened versions.

Conductors	Solid thermocouple extension wire to ASTM E230 and ANSI MC96.1, 20 AWG (0.8 mm diameter) or 16 AWG (1.29 mm diameter)
Calibrations	K, J, T, R, S, N
Insulation	Nominal 0.40 mm flame retardant PVC
Colour code	To ASTM E230 and ANSI MC96.1, numbered on the positive conductor. Other colours available.
Construction	Twisted pairs
Communication wire	22 AWG (0.61 mm) 7 strand copper, insulated with nominal 0.38 mm orange PVC, on 4 pair and larger
Cable shield	0.05 mm aluminium and polyester tape, 25% overlap
Drain wire	20 AWG 7 strand tinned copper
Outer jacket	Flame retardant PVC with ripcord under the jacket

Dimensions, overall shield, 20 AWG solid conductors

Pairs	Jacket thickness, mm	Outer diameter, mm	Bend radius, mm	Pull tension, kg	Net weight, kg/km
1	0.94	5.5	33	10	42
4	1.07	9.4	56	33	115
8	1.35	12.2	73	62	202
12	1.35	14.1	85	91	280
16	1.63	16.3	98	120	360
24	1.63	19.1	115	178	510

Dimensions, overall shield, 16 AWG solid conductors

Pairs	Jacket thickness, mm	Outer diameter, mm	Bend radius, mm	Pull tension, kg	Net weight, kg/km
1	0.94	6.5	39	25	64
4	1.35	12.0	72	78	201

Typical stock

29 model numbers we typically stock. Calibrations K, J, T, R, S and N are available, so ask us for one that is not listed.

Type K
Model	Description	Enquiry
TCKPSP120/2	2 pair, overall screen, 20 AWG solid	Request a quote
TCKPSP116/2	2 pair, overall screen, 16 AWG solid	Request a quote
TCKPSP120/4	4 pair, overall screen, 20 AWG solid	Request a quote
TCKPSP120/4IS	4 pair, individual screen, 20 AWG solid	Request a quote
TCKPSP116/4	4 pair, overall screen, 16 AWG solid	Request a quote
TCKPSP116/4IS	4 pair, individual screen, 16 AWG solid	Request a quote
TCKPSP120/8	8 pair, overall screen, 20 AWG solid	Request a quote
TCKPSP116/8	8 pair, overall screen, 16 AWG solid	Request a quote
TCKPSP120/8IS	8 pair, individual screen, 20 AWG solid	Request a quote
TCKPSP120/12	12 pair, overall screen, 20 AWG solid	Request a quote
TCKPSP120/12IS	12 pair, individual screen, 20 AWG solid	Request a quote
TCKPSP120/16	16 pair, overall screen, 20 AWG solid	Request a quote
TCKPSP120/16IS	16 pair, individual screen, 20 AWG solid	Request a quote
TCKPSP120/24	24 pair, overall screen, 20 AWG solid	Request a quote

Type J
Model	Description	Enquiry
TCJPSP120/4	4 pair, overall screen, 20 AWG solid	Request a quote
TCJPSP120/8	8 pair, overall screen, 20 AWG solid	Request a quote
TCJPSP120/12	12 pair, overall screen, 20 AWG solid	Request a quote
TCJPSP120/12IS	12 pair, individual screen, 20 AWG solid	Request a quote
TCJPSP120/30	30 pair, overall screen, 20 AWG solid	Request a quote

Type T
Model	Description	Enquiry
TCTPSP120/2	2 pair, overall screen, 20 AWG solid	Request a quote
TCTPSP120/4	4 pair, overall screen, 20 AWG solid	Request a quote
TCTPSP120/8	8 pair, overall screen, 20 AWG solid	Request a quote
TCTPSP120/8IS	8 pair, individual screen, 20 AWG solid	Request a quote
TCTPSP120/12	12 pair, overall screen, 20 AWG solid	Request a quote
TCTPSP120/20	20 pair, overall screen, 20 AWG solid	Request a quote
TCTPSP120/24	24 pair, overall screen, 20 AWG solid	Request a quote

Type N
Model	Description	Enquiry
TCNPSP120/2	2 pair, overall screen, 20 AWG solid	Request a quote
TCNPSP120/12	12 pair, overall screen, 20 AWG solid	Request a quote

Type R
Model	Description	Enquiry
TCRPSP120/12	12 pair, overall screen, 20 AWG solid	Request a quote
