Liquid level switches – Single with Tails

Data	MATERIAL	Fitting	Ø	SG	Temp	STYLE	OTHER	ACTION
SD1047						Ex ia Hazardous area		Reed switch

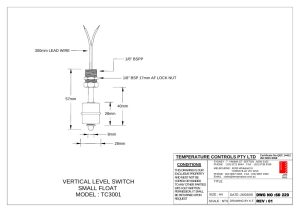

SD229	S/S	1/8” BSP	29mm	0.7	120 ºC	VERTICAL	TC3001	Reed switch

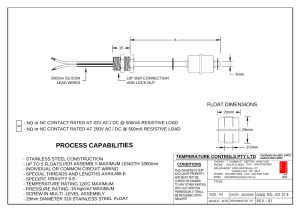

SD214	S/S	1/8” BSP	29mm	0.7	120 ºC	VERTICAL	TC3001S special	Reed switch

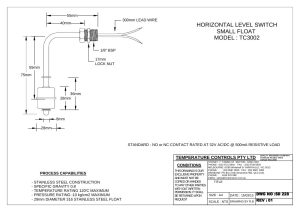

SD228	S/S	1/8” BSP	29mm	0.7	120 ºC	RIGHT ANGLE	TC3002	Reed switch

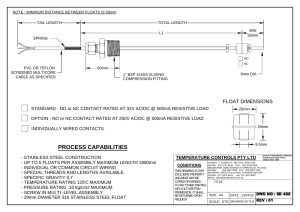

SD488	S/S	1” BSP	29mm	0.7	120 ºC	VERTICAL		Reed switch

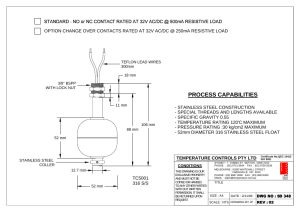

SD348	S/S	3/8” BSP	52mm	0.55	120 ºC	VERTICAL	TC5001	Reed switch

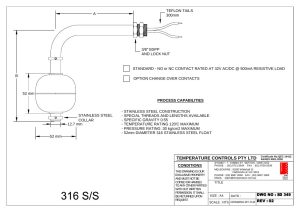

SD349	S/S	3/8” BSP	52mm	0.55	120 ºC	RIGHT ANGLE	TC5002	Reed switch

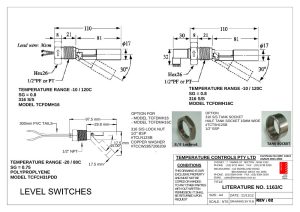

SD1163C	S/S	½” NPT	17mm	0.8	120 ºC	SIDE MOUNT	TCFDMH16	Reed switch
SD1163C	S/S	½” NPT	17mm	0.8	120 ºC	SIDE MOUNT	TCFDMH16C	Reed switch
SD1163C	polypropylene	½” NPT	17.5mm	0.75	80 ºC	SIDE MOUNT	TCFCH31PDD	Reed switch

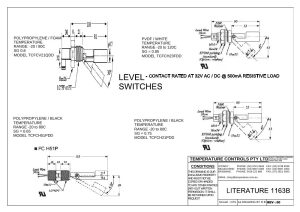

SD1163B	polypropylene	½” NPT	17.5mm	0.75	80 ºC	SIDE MOUNT	TCFCH51PDD	Reed switch
SD1163B	polypropylene	½” NPT	17.5mm	0.75	80 ºC	SIDE MOUNT	TCFCH21PDD	Reed switch
SD1163C	polypropylene	½” NPT	17.5mm	0.75	80 ºC	SIDE MOUNT	TCRFOH31DD	Reed switch

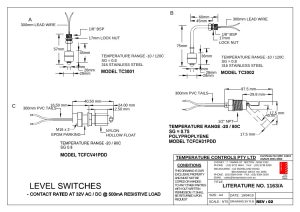

SD1163A	polypropylene	M16	25mm	0.8	80 ºC	VERTICAL	TCFCV41PDD	Reed switch
SD1163B	FOAM	1/8” BSP	25mm	0.8	80 ºC	VERTICAL	TCFCV21QDD	Reed switch
SD1163B	PDVF	M16	17.5mm	0.85	120 ºC	SIDE MOUNT	TCFCH23FDD	Reed switch

Drawings and documents
