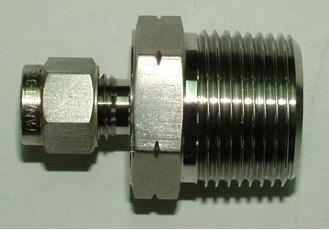

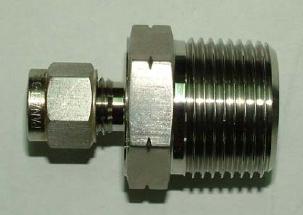

Compression fittings – Stainless Steel
| PART NO. | TUBE | THREAD |
|---|---|---|
| TC22S1810 | 1.0mm | 1/8” BSPT |
| TC22S1815 | 1.5mm | 1/8” BSPT |
| TC22S1415 | 1.5mm | 1/4” BSPT |
| TC22S1820 | 2.0mm | 1/8” BSPT |
| TC22S1830 | 3.0mm | 1/8” BSPT |
| TC22S1430 | 3.0mm | 1/4” BSPT |
| TC22S1230 | 3.0mm | 1/2” BSPT |
| TC22S1845 | 4.5mm | 1/8” BSPT |
| TC22S1445 | 4.5mm | 1/4” BSPT |
| TC22S1245 | 4.5mm | 1/2” BSPT |
| TC22S1860 | 6.0mm | 1/8” BSPT |
| TC22S1460 | 6.0mm | 1/4” BSPT |
| TC22S3860 | 6.0mm | 3/8” BSPT |
| TC22S1260 | 6.0mm | 1/2” BSPT |
| TC22S3460 | 6.0mm | 3/4” BSPT |
| TC22S1464 | 1/4” | 1/4” BSPT |
| TC22S1264 | 1/4” | 1/2” BSPT |
| TC22S1480 | 8.0mm | 1/4” BSPT |
| TC22S3880 | 8.0mm | 3/8” BSPT |
| TC22S1280 | 8.0mm | 1/2” BSPT |
| TC22S3480 | 8.0mm | 3/4” BSPT |
| TC22S180 | 8.0mm | 1” BSPT |
| TC22S3895 | 9.5mm | 3/8” BSPT |
| TC22S1295 | 9.5mm | 1/2” BSPT |
| TC22S3495 | 9.5mm | 3/4” BSPT |
| TC22S12108 | 10.8mm | 1/2” BSPT |
| TC22S1212 | 12.0mm | 1/2” BSPT |
| TC22S12127 | 12.7mm | 1/2” BSPT |
| TC22S34127 | 12.7mm | 3/4” BSPT |
| TC22S121NB | (1/2″ NB) 7/8″ | 1” BSPT |
BSP
| REDUCING BUSH | ||
|---|---|---|
| PART NO. | FEMALET THREAD | MALE THREAD |
| TCRB1418SB | 1/8” BSPT | 1/4” BSPT |
| TCRB1214SB | 1/4” BSPT | 1/2” BSPT |
| TCRB3412SB | 1/2” BSPT | 3/4” BSPT |
| TCRB112SB | 1/2” BSPT | 1” BSPT |
| TCRB134SB | 3/4” BSPT | 1” BSPT |
| TCRB34M20SB | M20 | 3/4” BSPT |
‘
| COMPRESSION FITTINGS STAINLESS STEEL – NPT | ||
|---|---|---|
| PART NO. | TUBE | THREAD |
| TC21S1815 | 1.5mm | 1/8” NPT |
| TC21S1415 | 1.5mm | 1/4” NPT |
| TC21S1830 | 3.0mm | 1/8” NPT |
| TC21S1430 | 3.0mm | 1/4” NPT |
| TC21S1230 | 3.0mm | 1/2” NPT |
| TC21S1845 | 4.5mm | 1/8” NPT |
| TC21S3845 | 4.5mm | 3/8” NPT |
| TC21S4512 | 4.5mm | 1/2” NPT |
| TC21S1460 | 6.0mm | 1/4” NPT |
| TC21S3860 | 6.0mm | 3/8” NPT |
| TC21S1260 | 6.0mm | 1/2” NPT |
| TC21S3460 | 6.0mm | 3/4” NPT |
| TC21S1414 | 1/4” | 1/4” NPT |
| TC21S1214 | 1/4” | 1/2” NPT |
| TC21S1280 | 8.0mm | 1/2” NPT |
| TC21S3495 | 9.5mm | 3/4” NPT |
| TC21S12127 | 12.7mm | 1/2” NPT |
| TC21S122 | 7/8” | 1” NPT |
| TC21S125 | 1” | 1” NPT |
| STAINLESS STEEL REDUCING BUSH NPT | ||
|---|---|---|
| PART NO. | FEMALET THREAD | MALE THREAD |
| TCRB1214SN | 1/4” NPT | 1/2” NPT |
| TCRB3412SN | 1/2” NPT | 3/4” NPT |
| TCRB112SN | 1/2” NPT | 1” NPT |
| TCRB134SN | 3/4” NPT | 1” NPT |
These are the standard compression fittings we stock.
Other sizes may be available as special purchase.
