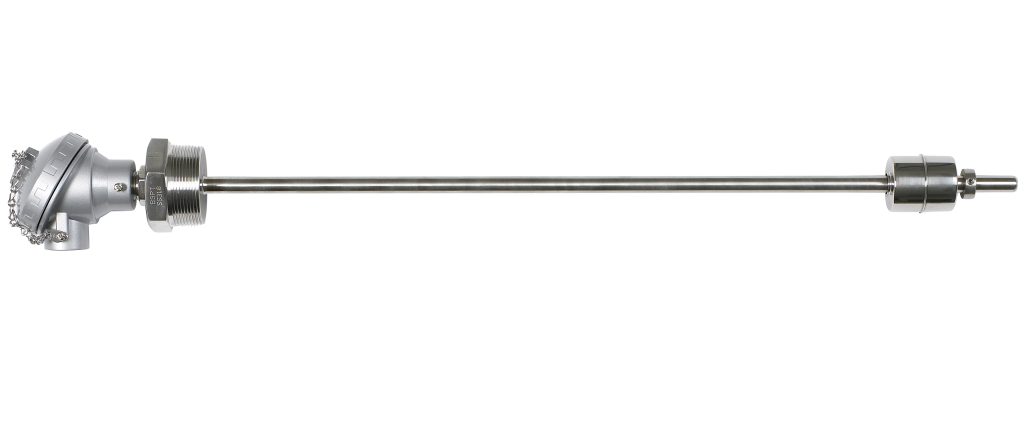

Analogue 4-20 mA Output Level Sensing

Continuous level control using resistor chain input into head mounted transmitter giving a 4– 20 mA output signal.

Max Temperature 120 °C
Max Length 2000 mm
Process connection 2” BSP or 2” Flange ( Standard ) Other sizes on request

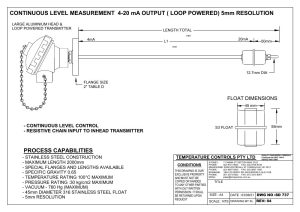

SD 737

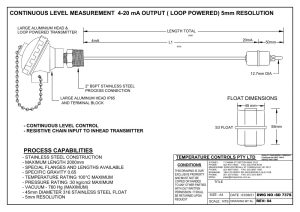

SD 737S
